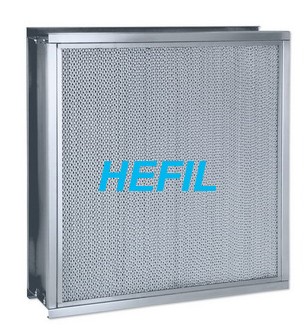

Silicon-free Temperature Filter
Silicone temperature filter performance characteristicsFirst, H10 ~ H14 a variety of efficiency specifications to suit different requirements
Second, the stainless steel frame supported by special silicon temperature sealing materials, temperature 200 o C.
Third, the special temperature sealing materials silicon and other volatiles, eliminate the production of electronic products, paint, coating, chemical raw materials
Fourth, the special folding equipment folding
Fifth, the special glass fiber filter as the filter
Sixth, special aluminum foil spacers
Seventh, each filter through rigorous testing
=== Should use ===
HTC silicone high temperature filters are mainly used in electronic industry, coating industry, chemical industry, and other requirements of high temperature air purification equipment and systems
- ===Common specifications===
| 型 號 外形尺寸 過濾面積(m2) 額定風量(m3/h) 初始壓降(Pa) W×H×D (mm) 標 準 高風量 標 準 高風量 H10 H12 H13 H14 HTR320 320×320×220 4.1 6.1 350 525 ≤160 ≤200 ≤235 ≤255 HTR484/10 484×484×220 9.6 14.4 1000 1500 HTR484/15 726×484×220 14.6 21.9 1500 2250 HTR484/20 968×484×220 19.5 29.2 2000 3000 HTR630/05 315×630×220 8.1 12.1 750 1200 HTR630/10 630×630×220 16.5 24.7 1500 2250 HTR630/15 945×630×220 24.9 37.3 2200 3300 HTR630/20 1260×630×220 33.4 50.1 3000 4500 HTR610/03 305×305×150 2.4 3.6 250 375 HTR610/05 305×610×150 5.0 7.5 500 750 HTR610/10 610×610×150 10.2 15.3 1000 1500 HTR610/15 915×610×150 15.4 23.1 1500 2250 HTR610/20 1220×610×150 20.6 30.9 2000 3000 HTR610/05X 305×610×292 10.1 15.1 1000 1500 HTR610/10X 610×610×292 20.9 31.3 2000 3000
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
